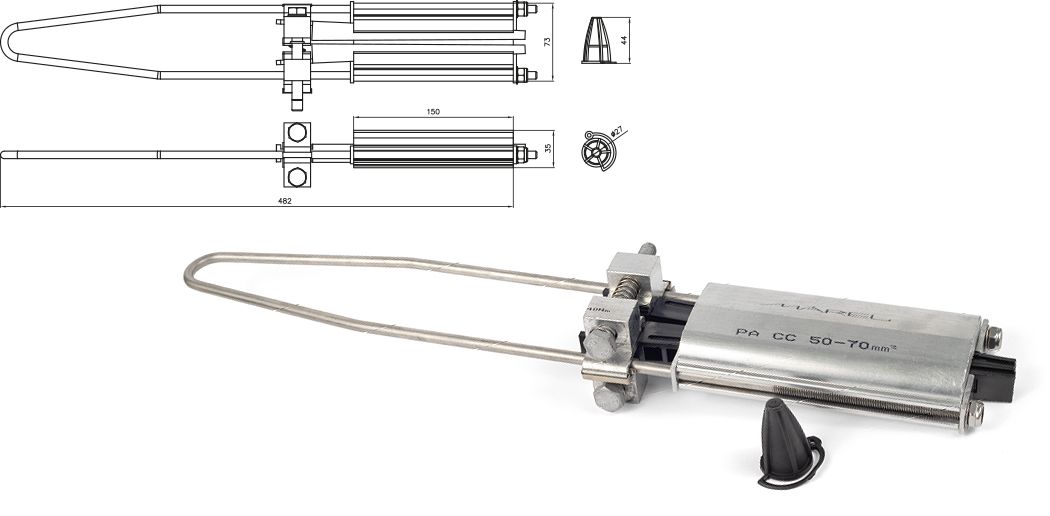

DEAD END CLAMP PA CC

Dead end clamp PA CC is designed to tighten medium voltage covered conductors (PAS/BLL). The clamp is equipped with an integrated potential equalization block that pierces the conductor insulation. Therefore, one of the main advantages of the clamp is that removal of insulation at the installation point is not required. The integrated block is fitted with a waterproof membrane, ensuring that after insulation piercing, moisture ingress at the contact point is permanently prevented. The clamp PA CC is also equipped with an integrated component for retightening of the installed assembly, intended for preventive maintenance purposes.

Wrench for tightening the block AF 16
Wrench for retightening during maintenance AF 13
Recommended tightening torque of the clamping block up to 40 Nm

Note: The clamp is designed for single use only. Once removed, the clamp shall not be reinstalled.
