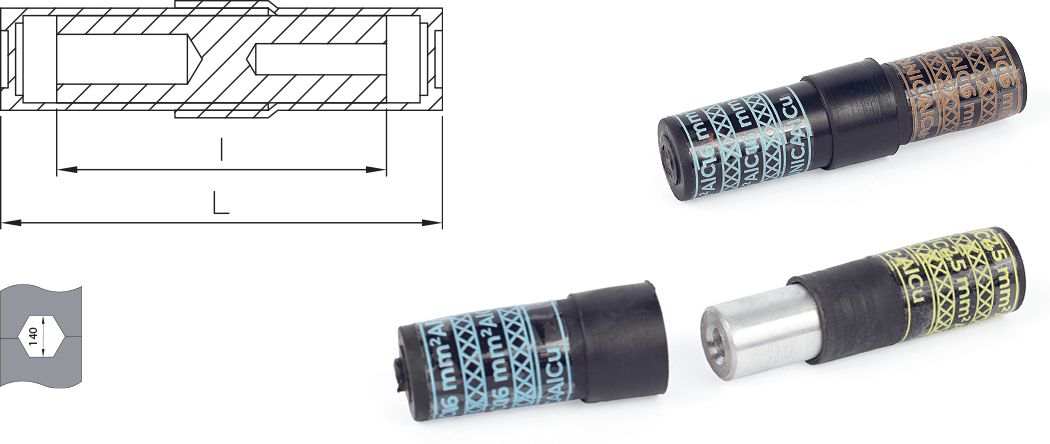

PRE-INSULATED AlCu (AlAl) JOINT FALIS

Pre-insulated Joint FALIS is designed for connection of low voltage service and street lighting conductors of cross-section from 4 mm² to 25 mm². Crimping is done over the insulation sheath with a die E140. Permament and clear markings on insulation sheath indicate the sequence and the number of crimpings, cross-section of the conductor and stripping length. Mechanical strength of the joint is 50% of MBL of the conductor. The inside of the joint is filled with silicone grease.
