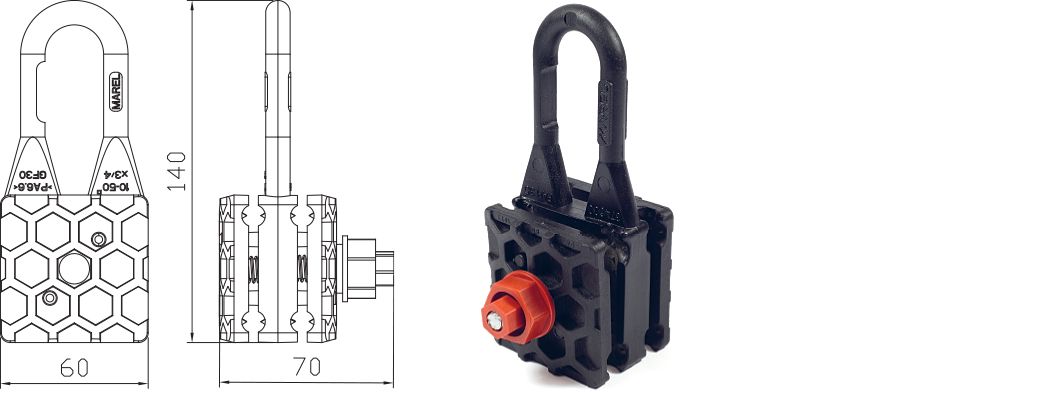

UNIVERSAL CLAMP UMS PAM 35 1/4X10-50 mm²

Marel universal clamp UMS PAM 2 2/3/4x10-50 mm² is designed to be used as anchoring, suspension or angular clamp for 1 to 4 LV insulated conductors of cross-section between 10-50 mm². The clamp is made of high-quality polyamide of high tensile strength and resistance to environmental effects and UV radiation. It is tested and certified so that it complies with all standards for cable accessories. The inner surface of Universal clamp UMS PAM 35 is serrated so that it has excellent mechanical contact with conductor's insulation. Tightening is done by a shear head nut of maximum tightening torque of 12 Nm. When the clamp is properly tightened ABC cannot be pulled out of serrated parts of the clamp, which leads to great installation possibilities and usage of the clamp without possibility of loosening of the cables on the route. Universal Clamp UMS PAM 35 is designed in such a way that it can anchor, suspend or change the angle of ABC route and it can be safely installed on power lines if proper personal protective equipment is used.

Minimum breaking load during tightening: 6 kN
Minimum breaking load during suspending: 6 kN
Minimum breaking load during angular turning: 6 kN

Packaging: 50 pcs
Weight: 18,00 kg/ 100 pcs

Note: The Clamp is designed in such a way that it can be used with Marel Aluminum Bracket, Cat. no. 370100.
