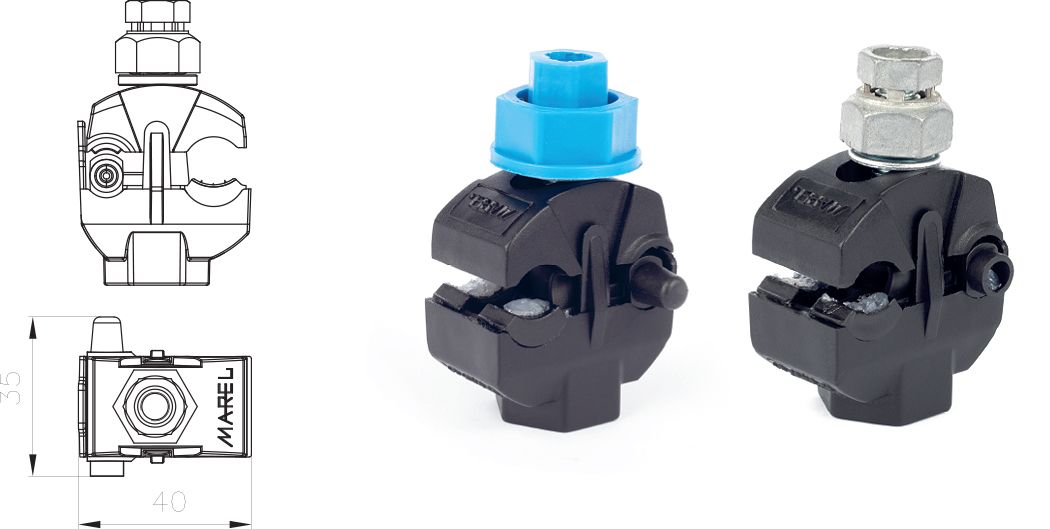

1,5-16/10-95 mm² CES/CT 95

KAT. BR./ CAT. NO. 371539 | KOD/CODE: CES/CT 95 | STANDARD: NF C 33-020 | EN 50483-4

MAREL Insulated Piercing Connector CES/CT 95 is designed to establish contact by simultaneously piercing the insulation on LV ABC conductors of main power distribution line and LV ABC conductors of street lighting connection line or other small electricity consumer.

Packaging: 50 pcs
Weight: 6,50 kg/100 pcs

Nominal tightening torque: 11 Nm;
Torque at which first contact is established: 4 Nm.

RANGE OF USE:
Cross-section of the main line Aluminum (Al) or Copper (Cu) 10 mm² to 95 mm²;
Cross-section of the tap line Aluminum (Al) or Copper (Cu) 1,5 mm² to 16 mm².

NOTE: the product ca be delivered with PA shear head nut, ALPA shear head nut or Zamak shear head nut.
At Customer request PA shear head nut can be made in different colour.
