2,5-35/16-95 mm² 2p CBSp/CN 95 2p

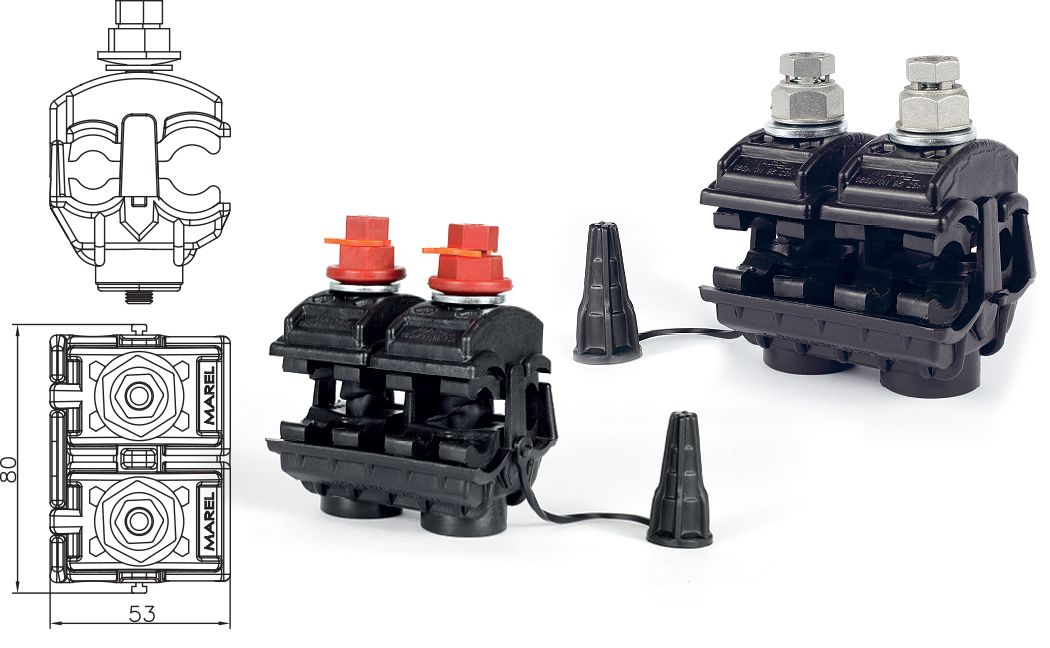

MAREL Insulated Piercing Connector CBSp/CN 95 2p is designed to establish contact by simultaneously piercing the insulation on LV ABC conductors of main power distribution line and LV ABC network connection conductor.

Packaging: 25 pcs
Weight: 22,00 kg/100 pcs

Nominal tightening torque: 13 Nm;
Torque at which first contact is established: 4 Nm;

RANGE OF USE:
Cross section of the main line Aluminum (Al) or Copper (Cu) 16 mm² to 95 mm²;
Cross section of the tap-off line Aluminum (Al) or Copper (Cu) 2,5 mm² to 35 mm².

NOTE: the product can be delivered with PA shear head nut, ALPA shear head nut or Zamak shear head nut.
At Customer request PA shear head nut can be made in diffrient colour.
