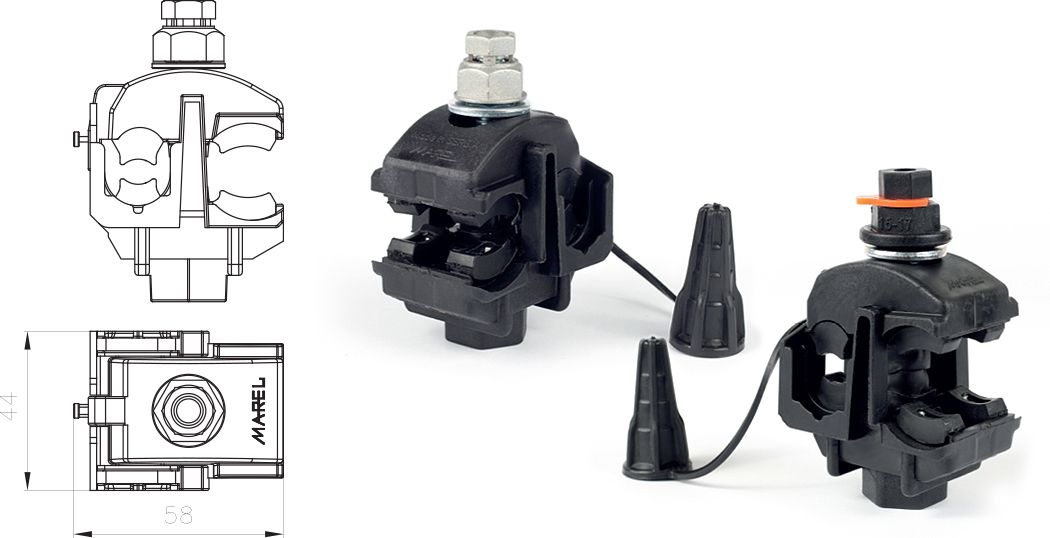

4-50/35-185 mm² CBS/CT 185

MAREL Insulated Piercing Connector CBS/CT 185 is designed to establish contact by simultaneously piercing the insulation on LV ABC conductors of main power distribution line and LV ABC network connection conductor.

Packaging: 50 pcs
Weight: 11,60 kg/100 pcs

Nominal tightening torque: 15 Nm;
Torque at which first contact is established: 7 Nm;

RANGE OF USE:
Cross-section of the main line Aluminum (Al) or Copper (Cu) 35 mm² to 185 mm²:
Cross-section of the tap line Aluminum (Al) or Copper (Cu) 4 mm² to 50 mm².

NOTE: the product can be delivered with PA shear head nut, AlPA shear head nut or Zamak shear head nut
At Customer request PA shear head nut can be made in different colour.
