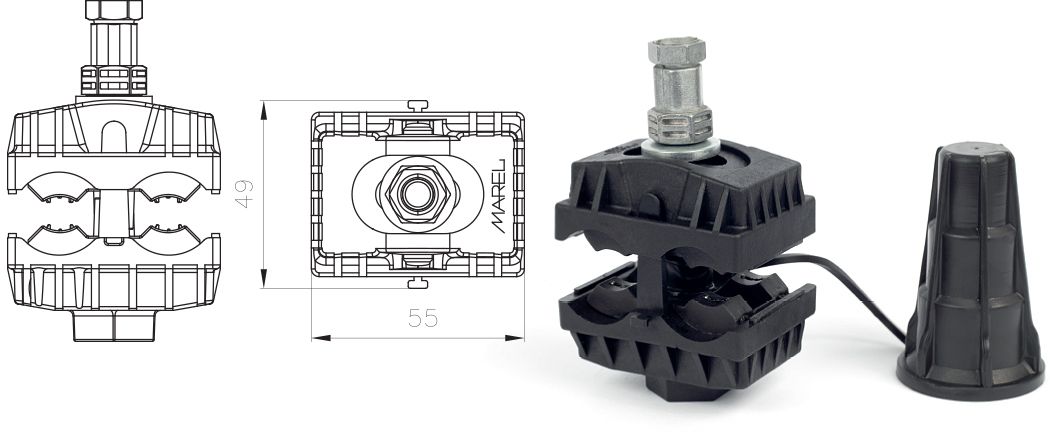

35-240/35-240 mm² CDRS/CT 240

MAREL Insulated Piercing Connector CDRS/CT 240 is designed to establish contact by simultaneously piercing the insulation on LV ABC conductors of two main power distribution lines or to connect a higher power object to the network.

Packaging: 30 pcs
Weight: 19,00 kg/100 pcs

Nominal tightening torque: 20-22 Nm;
Torque at which first contact is established: 6 Nm;

RANGE OF USE:
Cross-section of the main line Aluminum (Al) or Copper (Cu) 35 mm² to 240 mm²;
Cross-section of the tap line Aluminum (Al) or Copper (Cu) 35 mm² to 240 mm²;

NOTE: The product can be delivered with AlPA shear head nut or Zamak shear head nut.
At Customer request PA shear head nut can be made in diffrient colour.
