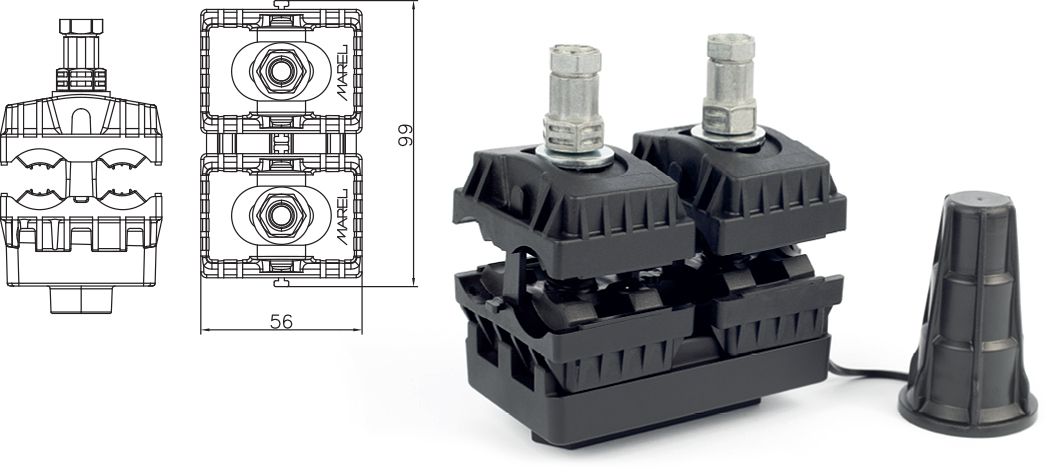

35-240/35-240 mm² 2p CDRS/CNT 240 2p

MAREL Insulated Piercing Connector CDRS/CNT 240 2p is designed to establish contact by simultaneously piercing the insulation on LV ABC conductors of two main power distribution lines or to connect a higher power object to the network.

Packaging: 15 pcs
Weight: 42,00 kg/100 pcs

Nominal tightening torque: 25 Nm;
Torque at which first contact is established: 7 Nm;

RANGE OF USE:
Cross-section of the main line Aluminum (Al) or Copper (Cu) 35 mm² to 240 mm²;
Cross-section of the tap line Aluminum (Al) or Copper (Cu) 35 mm² to 240 mm².

NOTE: the product can be delivered with PA shear head nut, ALPA shear head nut or Zamak shear head nut.
At Customer request PA shear head nut can be made in different colour.
